Carbon Microcoil

CMC

Carbon microcoil has a spring shape and is made from carbon. CMC does not exist naturally; CMC can be synthesized by CVD method.

"carbon microcoil" is so called because the diameter of each coil of CMC is around a micrometer. There are also carbon coils which diameter is less than 1 micrometer, which are usually called as"carbon nanocoil". For simplicity here, we call these microcoils and nanocoils together as carbon microcoils.

The conductivity of a single CMC will be worse than a single CNT, but the bulk conductivity is better than CNT. Because CMC has a spring structure and the conductivity changes due to its expansion and contraction, CMC can be used as the material of stress sensor. CMC radio wave

CMC is known as a good radio wave absorbent, particularly at higher frequencies (1GHz-100GHz). The stealth effect of the electromagnetic waves is due to its spiral coil shape, which is just equivalent to a inductance coil.

CMC can also be used as a high-frequency induction heater material, because it absorbs high-frequency induction electromagnetic waves with a high efficiency.

Because the major crystalline structure of CMC is amorphous, a CMC contains a large quantity of active sites on its surfaces, so that others molecules or nanoparticles are easily supported on the surfaces.

Coil Diameter:~1μm
Coil Wire:~100nm
Coil Length:10~30μm
Carbon Purify:>95%

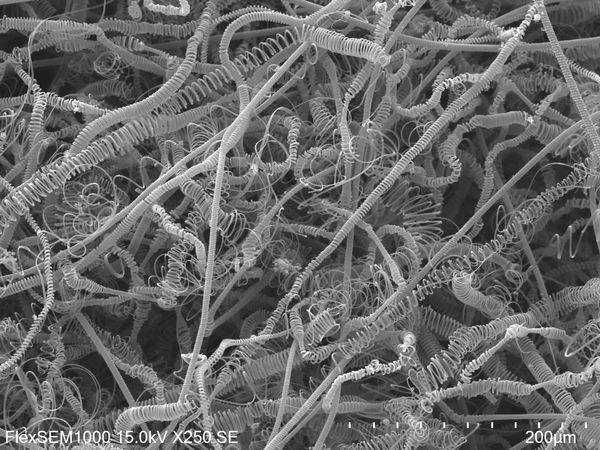

SEM image of As-Grown CMC

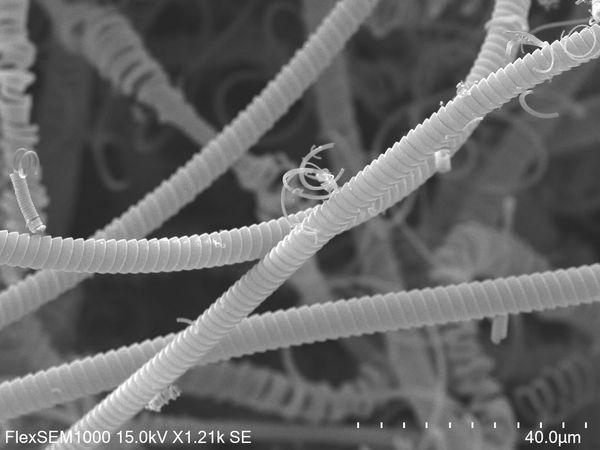

SEM image of As-Grown CMC


SEM image of As-Grown CMC

SEM image of As-Grown CMC:
Often grows radially


Ag-CMC

When Ag paste is added to CMC, an antibacterial effect is imparted.


Ni-CMC

CMC can support nickel nanoparticles to give magnetism and to tune the inductance.
Ni particles are selectively adsorbed on the CMC surface only by ordinary solution treatment.
