Desk-top CVD System for CNT Synthesis

MPCNT-Basic

Easy synthesis of CNT forests with ethanol only

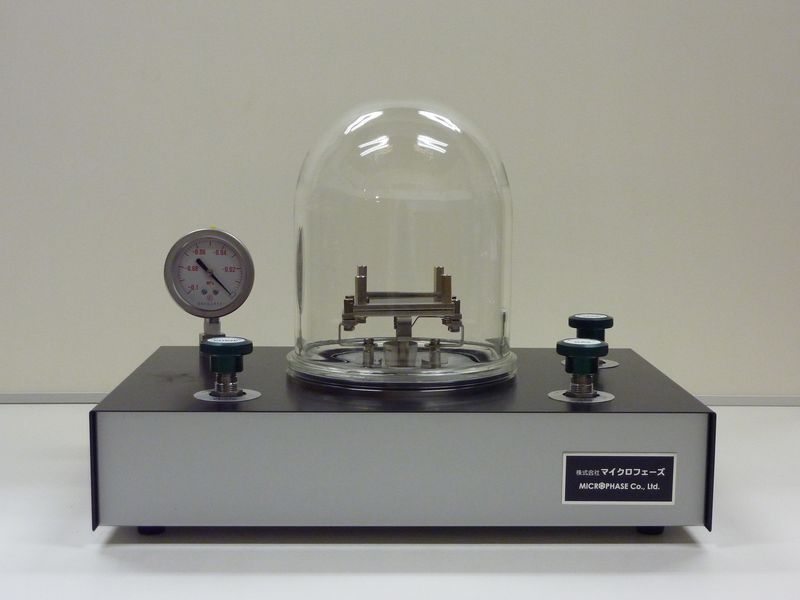

Main unit of MPCNT-Basic
*Appearance and specifications are subject to change without notice.

Video: Growing of vertically-aligned CNT (real time)

Purpose: The basic model of the desk-top CVD system is designed for researchers to grow vertically-aligned carbon nanotubes on substrates (Si, Quartz, metals, ceramics) using ethanol liquid (without using any hydrocarbon gas) only as carbon source, which leads to highly crystalline CNTs. The system can be installed anywhere even if in a laboratory where hydrogen carbon gas such as C2H2 or C2H4 cannot be stocked.
Features:
  •  Ethanol injection unit is equipped; flammable hydrocarbon gas is not required.
  •  CNT growth takes only a few minutes, the total operation process is less than 30 minutes.
  •  Compact size, simple operation, low price, high quality CNT.

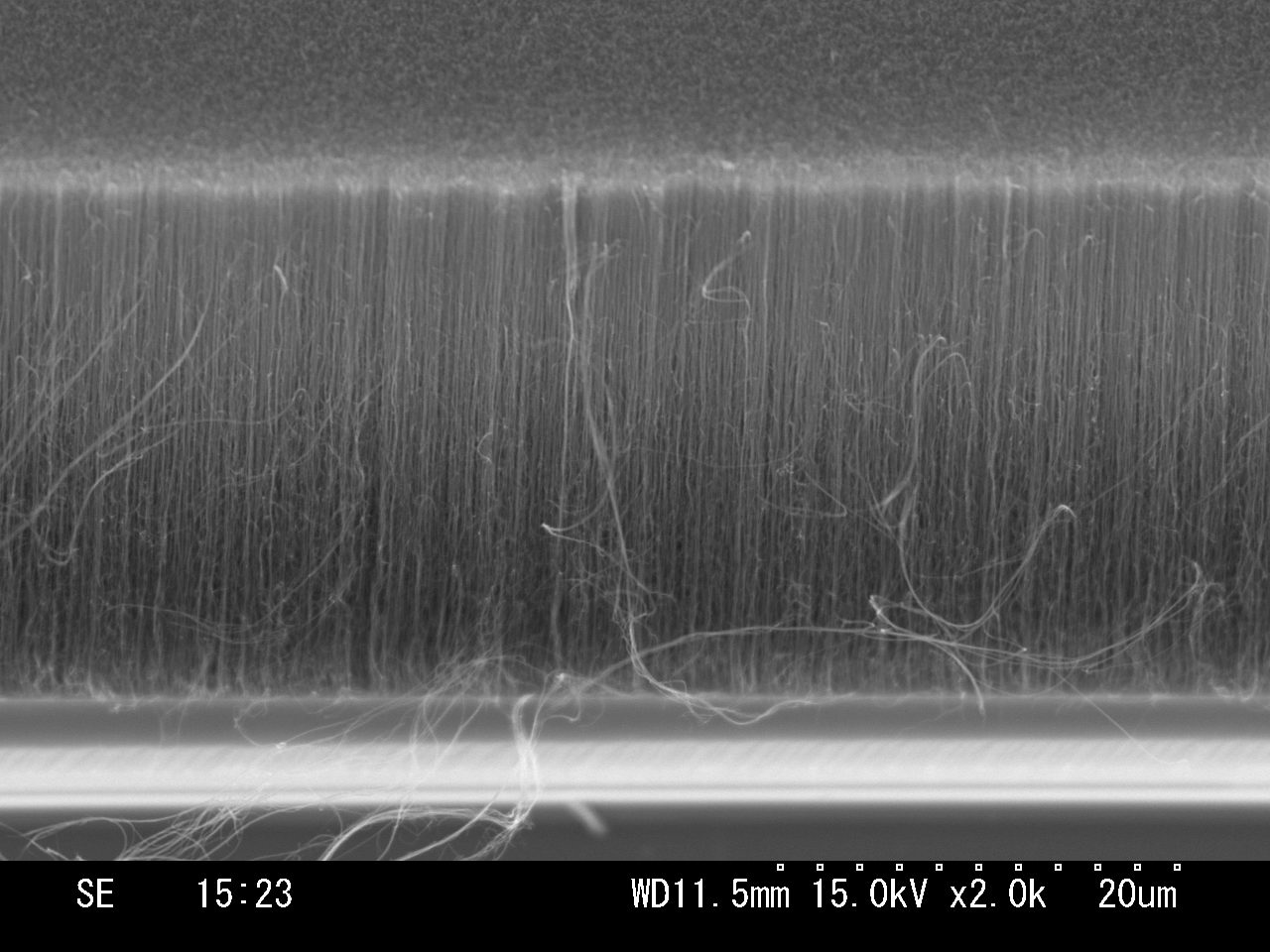

Vertically-aligned CNT on Si substrate

This is a mini-size, simplified carbon nanotube (CNT) synthesis system which uses ethanol as a carbon source. Ethanol is a very convenient material for producing carbon nanotubes. It does not require combustible gas cylinders like methane or acetylene gas, and allows CNT synthesis experiments to be conducted anywhere.

The system does not require the use of reduction gas (hydrogen gas) for catalyst reduction, because ethanol also has a strong metal-reduction effect. The meta-reduction effect of ethanol enables CNT to be directly grown on alloy materials such as NiCu, SUS, etc. without the deposition of catalyst thin film, because the catalytic Ni, Fe, or Co elements in the alloys are segregated as catalytic particles.

With the system, highly crystallized, vertically aligned CNT can be grown on various types of substrates such as silicon, quartz, stainless steel, metals, and ceramics. The size of the system is as small as a personal computer. The operation is simple, and the entire process only takes 20 to 30 minutes. The transparent glass chamber enables the process of CNT growth to be directly observed. This system is suitable for CNT synthesis experiments in university laboratories and as experimental equipment for educational programs.

We developed this unique CNT synthesis system with technical support from the Japan Science and Technology Agency (JST), the research institute of the Japanese government. We obtained patents for this technology in many countries around the world.

* Note: A thin catalyst film should be deposited on the substrates in advance of the CNT growth process. If a customer does not have a catalytic film formation system (e.g., a vacuum deposition apparatus or spattering system), we recommend our MPCNT-Premium model, a complete system covering a range of processes from catalyst formation to CNT growth, or Highly-functioned vacuum deposition apparatus MPVAP. Substrates with a catalytic membrane are also available as consumables at Microphase.

Specifications

Configuration Main Unit

Grass Chamber

Gas Introducing Port

Vacuum Pump Port

Leak Port

Vacuum Gauge

Current Terminal

Dimension:W400㎜×H300㎜×D265㎜

JPY18,000,000~
Plate Heater

25mm×40mm

Operating Temp.:400~800℃

Power Supply

Output Power:400W

AC90-250V single-phase 50-60Hz

Dimension:W110㎜×H130㎜×D405㎜

Vacuum Pump

Oil-sealed Rotary Vacuum Pump

Dimension:W156㎜×H200㎜×D300㎜

Holder for Ethanol
Option Radiation Thermometer Set JPY360,000-
